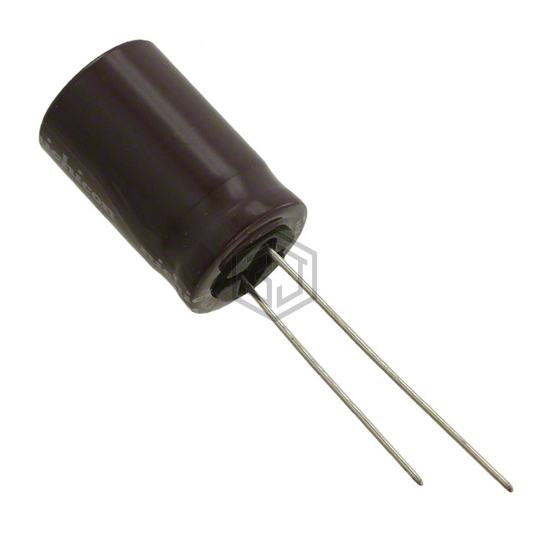

CAP ALUM 33UF 20% 250V RADIAL
UPB2E330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E330MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-EB2G330 | Panasonic Electronic Components | CAP ALUM 33UF 20% 400V RADIAL | 86% | View |
| EGXF401ELL330ML20S | United Chemi-Con | CAP ALUM 33UF 20% 400V RADIAL TH | 80% | View |
| UCY2V330MHD1TO | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 78% | View |
| UCPW6330MPD | Nichicon | CAP ALUM 33UF 20% 420V RADIAL | 77% | View |
| 500BXC33MEFC16X31.5 | Rubycon | CAP ALUM 33UF 20% 500V RADIAL | 74% | View |
| MAL214257339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 69% | View |
