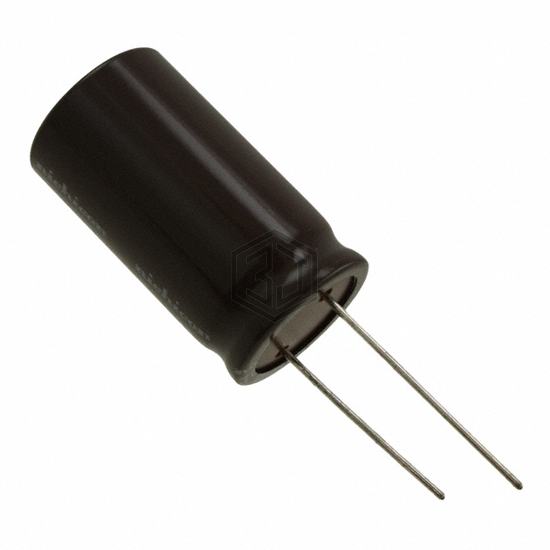

CAP ALUM 270UF 20% 250V RADIAL
UPB2E271MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E271MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2277M60 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 200V SNAP | 87% | View |
| 381LX271M350H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 350V SNAP | 85% | View |
| 400MXG270MEFCSN25X40 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 75% | View |
| MAL225916271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 400V SNAP | 71% | View |
| 510DX277M025DM5D | Vishay Sprague | CAP ALUM 270UF 20% 25V RADIAL | 56% | View |
| 50YXH270MEFC12.5X16 | Rubycon | CAP ALUM 270UF 20% 50V RADIAL | 54% | View |
