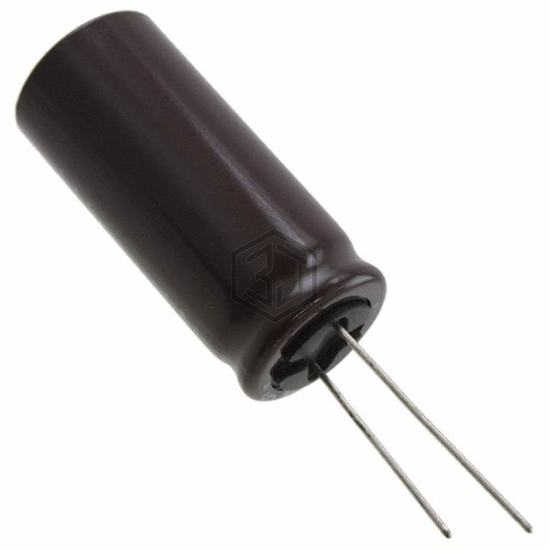

CAP ALUM 220UF 20% 250V RADIAL
UPB2E221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,165
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E221MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKX2E221MESY30 | Nichicon | CAP ALUM 220UF 20% 250V SNAP | 93% | View |
| 350MXC220MEFC30X30 | Rubycon | CAP ALUM 220UF 20% 350V SNAP | 81% | View |
| 180KXF220MEFC22X20 | Rubycon | CAP ALUM 220UF 20% 180V SNAP | 81% | View |
| MAL205976221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SNAP | 80% | View |
| 420MXH220MEFC25X30 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 76% | View |
| LQS2W221MELA40 | Nichicon | CAP ALUM 220UF 20% 450V SNAP | 73% | View |
Submit your RFQ for UPB2E221MHD and get a quote within 24 hours.
