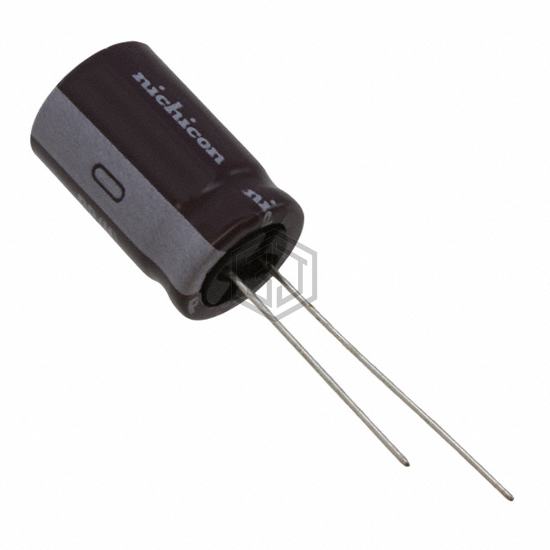

CAP ALUM 22UF 20% 250V RADIAL
UPB2E220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,298
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E220MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KJ2D220MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| EKXG401ETD220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 80% | View |
| 400BXC22M12.5X25 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 80% | View |
| MAL214252295E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 65% | View |
| URZ2G220MHD1TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 61% | View |
| 50RX3022M5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
