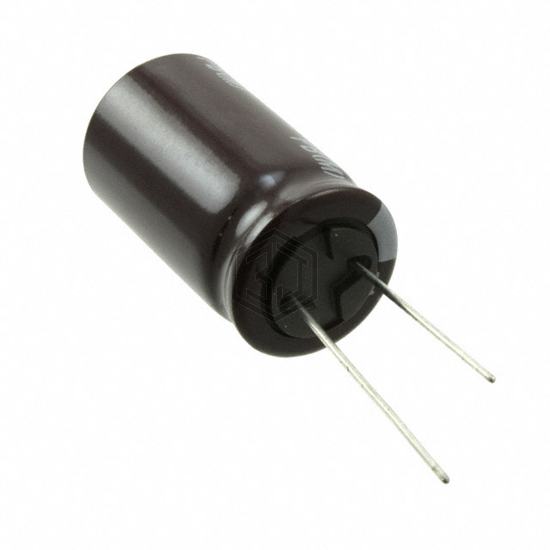

CAP ALUM 150UF 20% 250V RADIAL
UPB2E151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,351
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E151MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SQ2E151MU01635 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 91% | View |
| EKMQ401VSN151MQ25S | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 78% | View |
| EKMH401VNN151MR25S | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 78% | View |
| PW2S151MNN1835 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| 861141485015 | Würth Elektronik | CAP ALUM 150UF 20% 450V SNAP | 73% | View |
| B43504A5157M60 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 70% | View |
