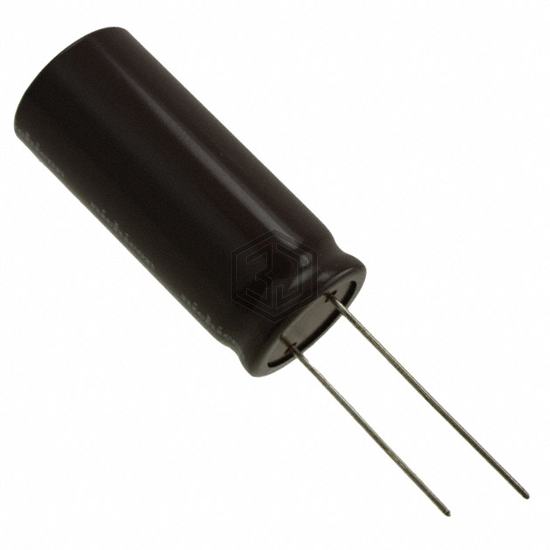

CAP ALUM 560UF 20% 200V RADIAL
UPB2D561MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,799
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2D561MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDQ2D561MERZGA | Nichicon | CAP ALUM 560UF 20% 200V RADIAL | 93% | View |
| LAQ2D561MELB30 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| LAK2D561MELZ45 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| B43504B2567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 83% | View |
| 250VXG560MEFC25X40 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 79% | View |
| 315VXH560MEFC35X30 | Rubycon | CAP ALUM 560UF 20% 315V SNAP | 78% | View |
Submit your RFQ for UPB2D561MRD and get a quote within 24 hours.
