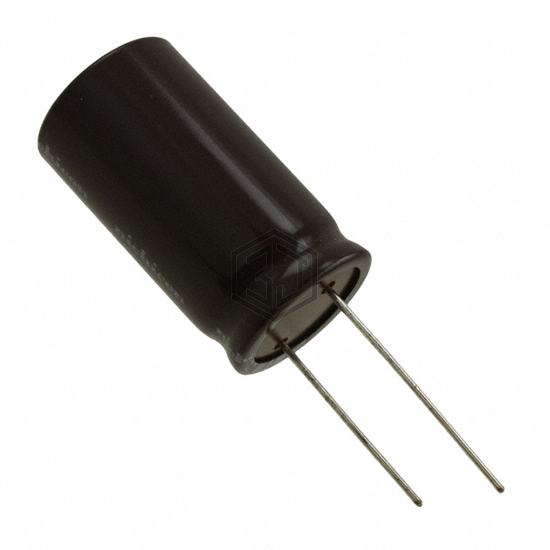

CAP ALUM 390UF 20% 200V RADIAL
UPB2D391MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,884
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2D391MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43254C2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 94% | View |
| B43252E2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 87% | View |
| EKMS251VSN391MQ25S | United Chemi-Con | CAP ALUM 390UF 20% 250V SNAP | 86% | View |
| 381LX391M400A042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 400V SNAP | 71% | View |
| 381LR391M400A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 400V SNAP | 64% | View |
| B43508A9397M67 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 64% | View |
Submit your RFQ for UPB2D391MRD and get a quote within 24 hours.
