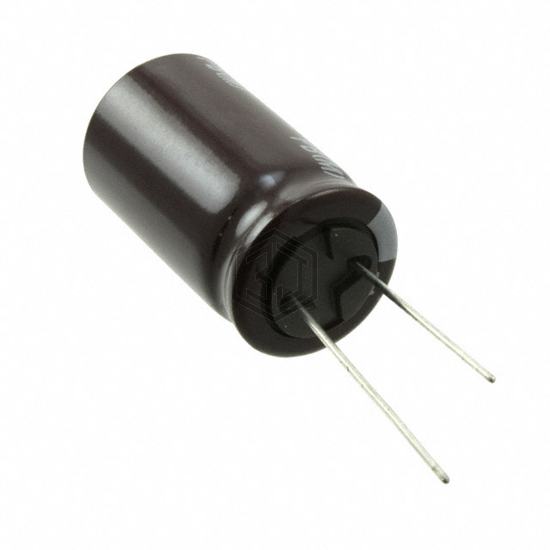

CAP ALUM 270UF 20% 200V RADIAL
UPB2D271MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,867
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2D271MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP271M220A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 220V SNAP | 90% | View |
| LGX2W271MELC30 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 71% | View |
| EKMM451VNN271MQ60S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 71% | View |
| LGG2W271MELC25 | Nichicon | CAP ALUM 270UF 20% 450V SNAP | 68% | View |
| 400MXG270MEFCSN30X30 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 67% | View |
| EKYB800ELL271MJ30S | United Chemi-Con | CAP ALUM 270UF 20% 80V RADIAL | 63% | View |
Submit your RFQ for UPB2D271MHD and get a quote within 24 hours.
