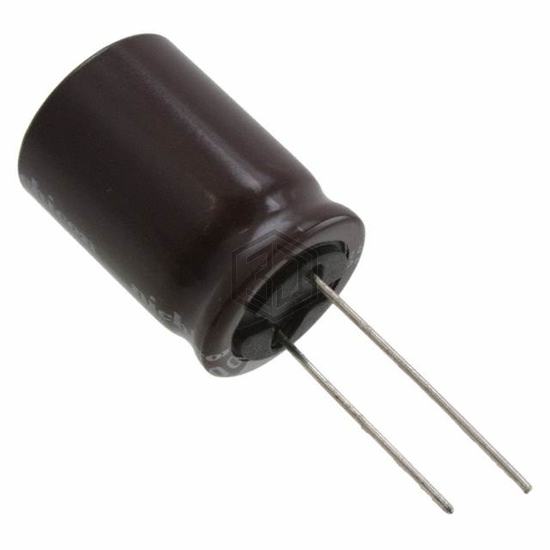

CAP ALUM 150UF 20% 200V RADIAL
UPB2D151MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,654
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2D151MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43254D4157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 350V SNAP | 77% | View |
| B43254B9157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 73% | View |
| EKMM451VSN151MA25S | United Chemi-Con | CAP ALUM 150UF 20% 450V SNAP | 71% | View |
| 861021485022 | Würth Elektronik | CAP ALUM 150UF 20% 450V SNAP | 69% | View |
| B43508A5157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 62% | View |
| 450MXH150MEFCSN22X35 | Rubycon | CAP ALUM 150UF 20% 450V SNAP | 61% | View |
Submit your RFQ for UPB2D151MHD1TN and get a quote within 24 hours.
