CAP ALUM 100UF 20% 200V RADIAL

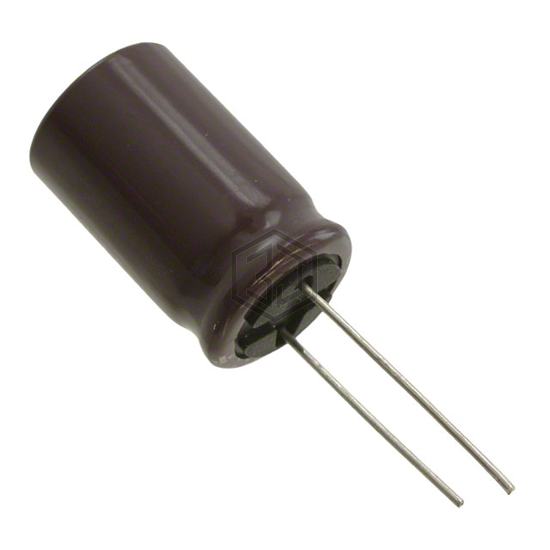

UPB2D101MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,891
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2D101MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400CXW100MEFR16X31.5 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 72% | View |
| EKMH401VSN101MQ25S | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 71% | View |
| B43252D6107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 500V SNAP | 66% | View |
| B43254B5107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 66% | View |
| B43508B5107M2 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 65% | View |
| 107KBM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 100V RADIAL | 60% | View |
Submit your RFQ for UPB2D101MHD1TN and get a quote within 24 hours.
