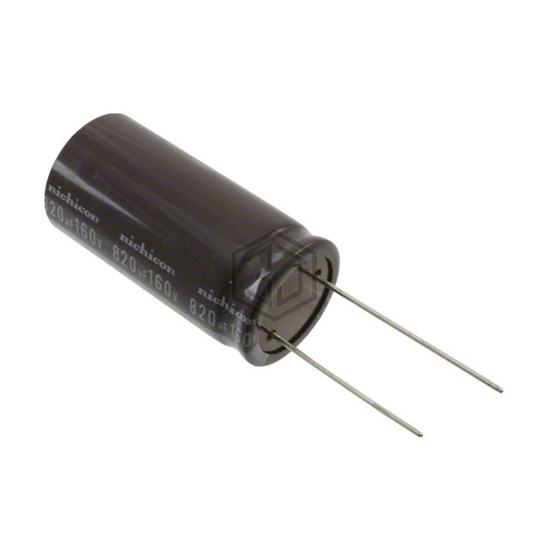

CAP ALUM 820UF 20% 160V RADIAL
UPB2C821MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 2,204
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2C821MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM161VSN821MP45S | United Chemi-Con | CAP ALUM 820UF 20% 160V SNAP | 92% | View |
| B43252B2827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 83% | View |
| B43508F2827M60 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 75% | View |
| LGW2D821MELZ45 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 73% | View |
| B41890A6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 70% | View |
| EEU-FC1J821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 69% | View |
Submit your RFQ for UPB2C821MRD and get a quote within 24 hours.
