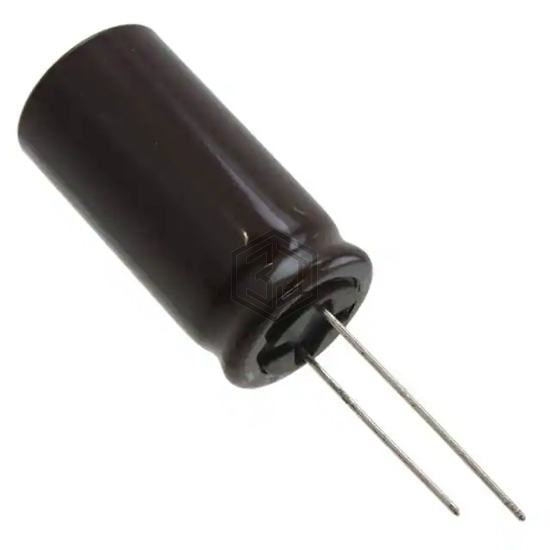

CAP ALUM 470UF 20% 160V RADIAL
UPB2C471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 5,229
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2C471MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D471MELA | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 83% | View |
| B43504B2477M60 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 68% | View |
| LAQ2G471MELC45 | Nichicon | CAP ALUM 470UF 20% 400V SNAP | 65% | View |
| LGW2D471MELZ30 | Nichicon | CAP ALUM 470UF 20% 200V SNAP | 65% | View |
| 25ZLH470MEFC8X16 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
| MAL213827471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 40V AXIAL | 56% | View |
Submit your RFQ for UPB2C471MHD and get a quote within 24 hours.
