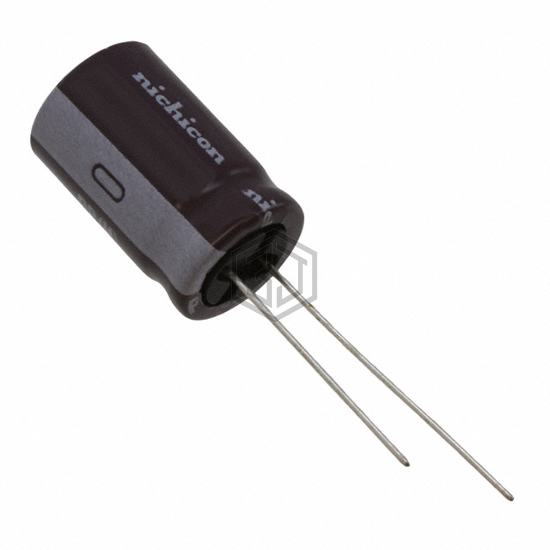

CAP ALUM 47UF 20% 160V RADIAL
UPB2C470MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 9,774
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2C470MHD1TO is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA1040470M350B | KYOCERA AVX | CAP ALUM 350V POLAR | 70% | View |
| 250YXA47M12.5X25 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 69% | View |
| EKMG251ELL470MK25S | United Chemi-Con | CAP ALUM 47UF 20% 250V RADIAL | 67% | View |
| 860131180008 | Würth Elektronik | CAP ALUM 47UF 20% 250V RADIAL | 62% | View |
| EJ1H470MP51009U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
| EKXL401ELL470MJ40S | United Chemi-Con | CAP ALUM 47UF 20% 400V RADIAL TH | 55% | View |
Submit your RFQ for UPB2C470MHD1TO and get a quote within 24 hours.
