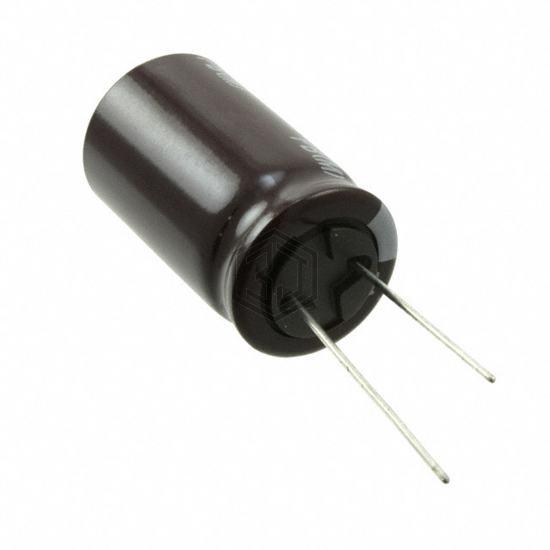

CAP ALUM 330UF 20% 160V RADIAL
UPB2C331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 5,766
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2C331MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A331S | Panasonic Electronic Components | CAP ALUM 330UF 20% 100V RADIAL | 79% | View |
| B43254E2337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 78% | View |
| 337KBM050MGJD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| LGG2W331MELA50 | Nichicon | CAP ALUM 330UF 20% 450V SNAP | 70% | View |
| B43504C2337M007 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 70% | View |
| MAL215090185E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 67% | View |
