CAP ALUM 1000UF 20% 35V RADIAL

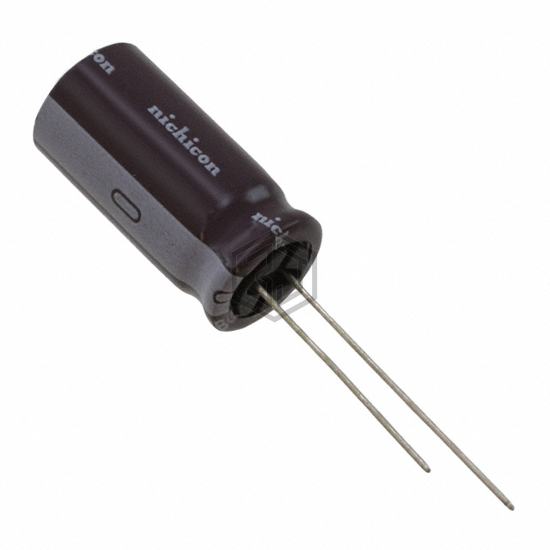

UPB1V102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,996
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | 655.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1V102MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 108TMA025M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 84% | View |
| REH1016102M010K | KYOCERA AVX | CAP ALUM 1MF 20% 10V RADIAL TH | 75% | View |
| REH1220102M035K | KYOCERA AVX | CAP ALUM 1MF 20% 35V RADIAL TH | 75% | View |
| 10YXJ1000M10X12.5 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 69% | View |
| 678D108M016EK3D | Vishay Sprague | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
| 16YXH1000MEFCT810X20 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 51% | View |
