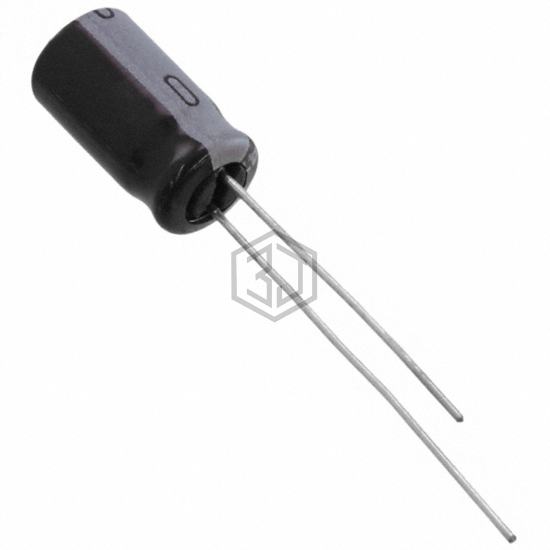

CAP ALUM 47UF 20% 50V RADIAL
UPB1H470MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,061
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0725 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H470MED is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TBE1H470MCD1LT | Nichicon | CAP ALUM 47UF 20% 50V AXIAL | 100% | View |
| MALREKB00AA247F00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 73% | View |
| EEA-GA1V470H | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V RADIAL | 54% | View |
| EKXL401ELL470MJ40S | United Chemi-Con | CAP ALUM 47UF 20% 400V RADIAL TH | 52% | View |
| EKXJ351ELL470MU20S | United Chemi-Con | CAP ALUM 47UF 20% 350V RADIAL | 52% | View |
| EKXJ351ELL470MK25S | United Chemi-Con | CAP ALUM 47UF 20% 350V RADIAL | 52% | View |
