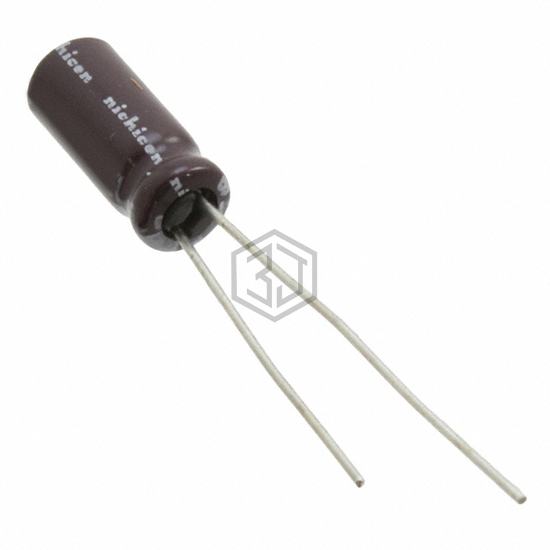

CAP ALUM 3.3UF 20% 50V RADIAL
UPB1H3R3MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,535
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 33 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H3R3MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1J3R3MDD1TD | Nichicon | CAP ALUM 3.3UF 20% 63V RADIAL | 88% | View |
| 50YXF3.3MEFC5X11 | Rubycon | CAP ALUM 3.3UF 20% 50V RADIAL | 86% | View |
| 50YXJ3R3M5X11 | Rubycon | CAP ALUM 3.3UF 20% 50V RADIAL | 86% | View |
| EKMG500ETC3R3ME11D | United Chemi-Con | CAP ALUM 3.3UF 20% 50V RADIAL | 79% | View |
| UBX1V3R3MPL1TD | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 65% | View |
| 860130873004 | Würth Elektronik | CAP ALUM 3.3UF 20% 100V RADIAL | 50% | View |
