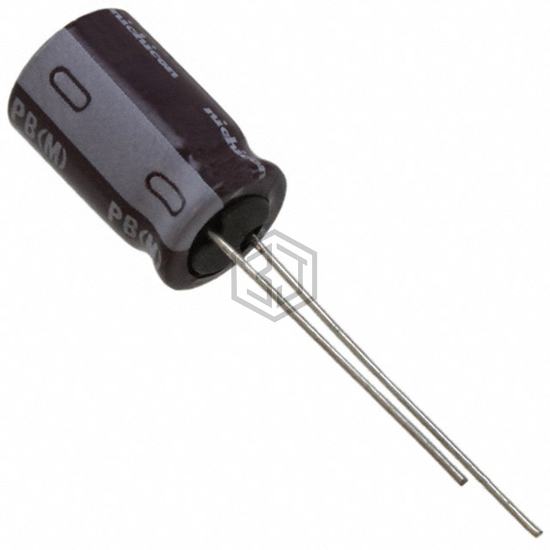

CAP ALUM 220UF 20% 50V RADIAL
UPB1H221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,886
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 235 mA @ 120 Hz |
| Ripple Current @ High Frequency | 305.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H221MPD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204858221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 73% | View |
| B41866C5227M008 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 25V RADIAL | 71% | View |
| 10ZL220MEFCT16.3X11 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 69% | View |
| 16RX30220MT78X16 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
| ELXV500ELL221MJ25S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 52% | View |
| UTS1A221MPD1TA | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 51% | View |
