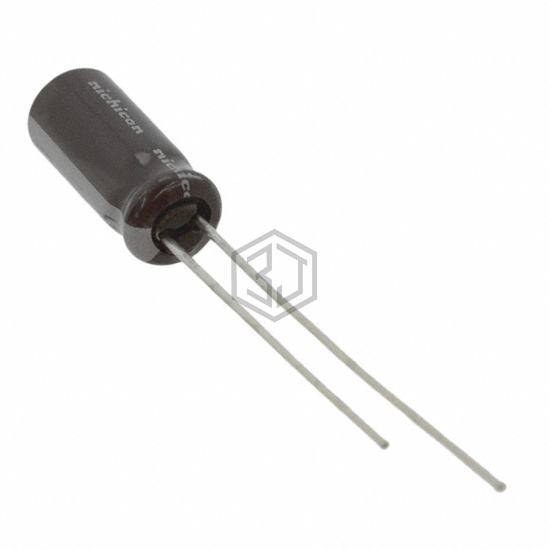

CAP ALUM 22UF 20% 50V RADIAL
UPB1H220MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,381
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H220MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50MH722MEFCTZ6.3X7 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 87% | View |
| UEP1H220MPD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 85% | View |
| UST1H220MDD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 84% | View |
| UKT1H220MDD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 83% | View |
| 50YXH22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 79% | View |
| UPW1V220MDD1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 76% | View |
