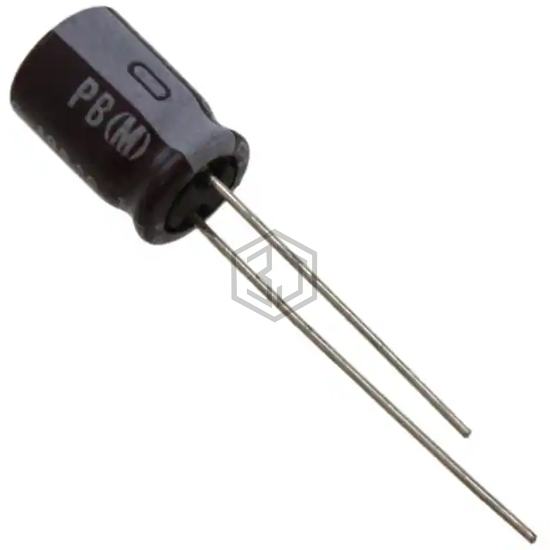

CAP ALUM 100UF 20% 50V RADIAL
UPB1H101MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,845
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H101MPD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50NXA100MEFC10X16 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 83% | View |
| 35ZLG100MEFC8X11.5 | Rubycon | CAP ALUM 100UF 20% 35V RADIAL | 77% | View |
| EKMG100ETC101ME11D | United Chemi-Con | CAP ALUM 100UF 20% 10V RADIAL | 76% | View |
| MAL213661101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
| 860080674009 | Würth Elektronik | CAP ALUM 100UF 20% 50V RADIAL | 64% | View |
| 16YXM100MEFRT16.3X11 | Rubycon | CAP ALUM 100UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for UPB1H101MPD1TD and get a quote within 24 hours.
