CAP ALUM 10UF 20% 50V RADIAL

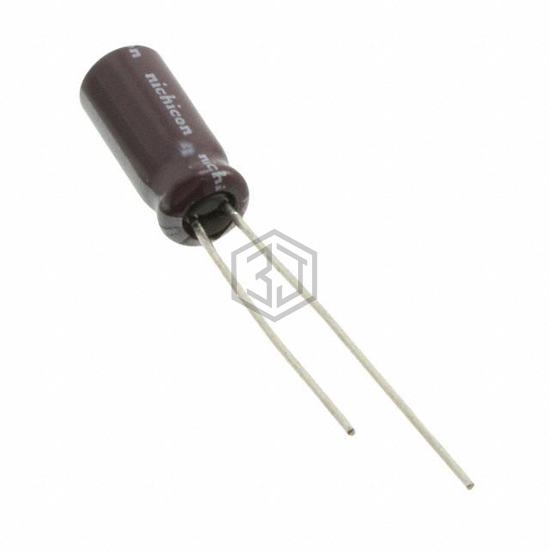

UPB1H100MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,333
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1H100MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50RX3010MT15X11 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 100% | View |
| 50YXJ10MT15X11 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 75% | View |
| EEU-EB1J100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V RADIAL | 73% | View |
| ESH106M050AC3LA | KEMET | CAP ALUM RAD 105C | 71% | View |
| ESH106M050AC3KA | KEMET | CAP ALUM RAD 105C | 71% | View |
| SEK100M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPB1H100MDD and get a quote within 24 hours.
