CAP ALUM 1000UF 20% 25V RADIAL

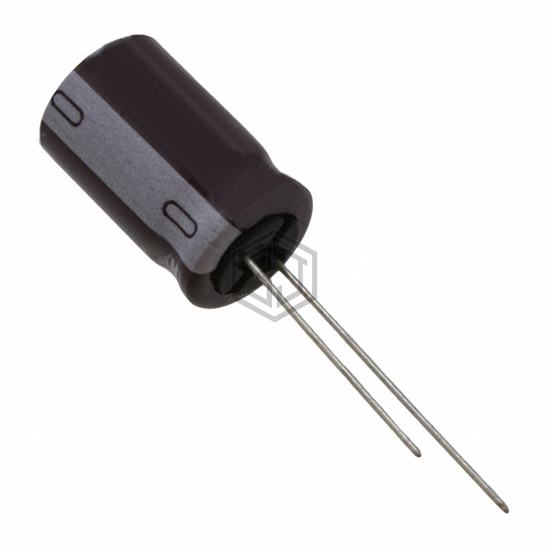

UPB1E102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,359
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 575 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1E102MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10NXA1000MEFC10X20 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 67% | View |
| EKZE6R3ELL102MJC5S | United Chemi-Con | CAP ALUM 1000UF 20% 6.3V RADIAL | 60% | View |
| 30D108G010FK2A | Vishay Sprague | CAP ALUM 1000UF 10V AXIAL | 56% | View |
| 381LX102M080H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 80V SNAP | 56% | View |
| 108RZM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 10V RADIAL | 56% | View |
| 50WXA1000MEFC16X20 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 50% | View |
