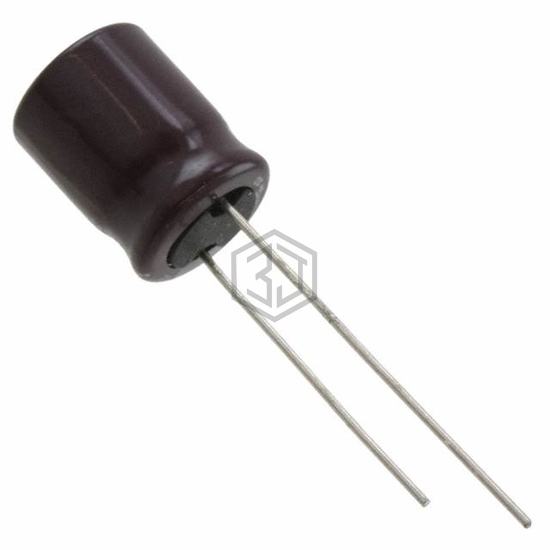

CAP ALUM 470UF 20% 16V RADIAL
UPB1C471MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,308
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 351 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1C471MPD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07CB347X02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% SNAP | 100% | View |
| EKMG160ELL471MHB5D | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 90% | View |
| SEK471M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 10V RADIAL | 82% | View |
| MAL211925471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 16V AXIAL | 76% | View |
| ELXV160ETD471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 63% | View |
| EEU-TA1C471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 53% | View |
