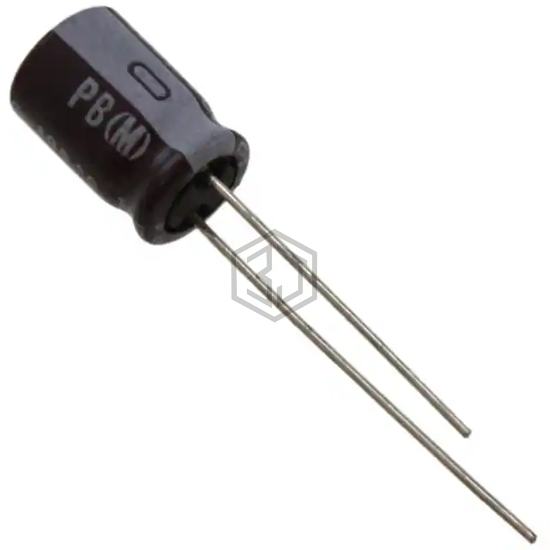

CAP ALUM 220UF 20% 16V RADIAL
UPB1C221MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,141
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 169 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1C221MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16ML220MEFCTA8X7.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 89% | View |
| MAL213824221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V AXIAL | 68% | View |
| UBT1A221MPD1TD | Nichicon | CAP ALUM 220UF 20% 10V RADIAL | 63% | View |
| 16YXF220MEFC8X11.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 61% | View |
| ESH227M050AH1AA | KEMET | CAP ALUM 220UF 20% 50V RADIAL | 56% | View |
| 75YXF220MEFCG110X20 | Rubycon | CAP ALUM 220UF 20% 75V RADIAL | 56% | View |
