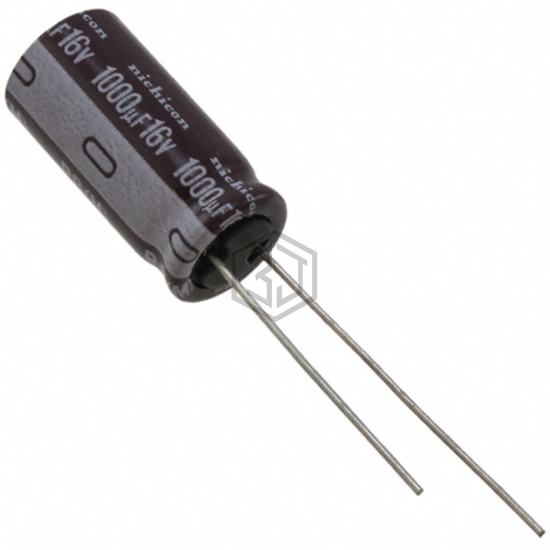

CAP ALUM 1000UF 20% 16V RADIAL
UPB1C102MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,399
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1C102MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212624102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 10V AXIAL | 74% | View |
| 860130375008 | Würth Elektronik | CAP ALUM 1000UF 20% 16V RADIAL | 74% | View |
| URZ1E102MHD | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| EEU-FM1C102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 64% | View |
| 10YXG1000MEFC10X16 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 64% | View |
| MAL211944102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 10V AXIAL | 59% | View |
