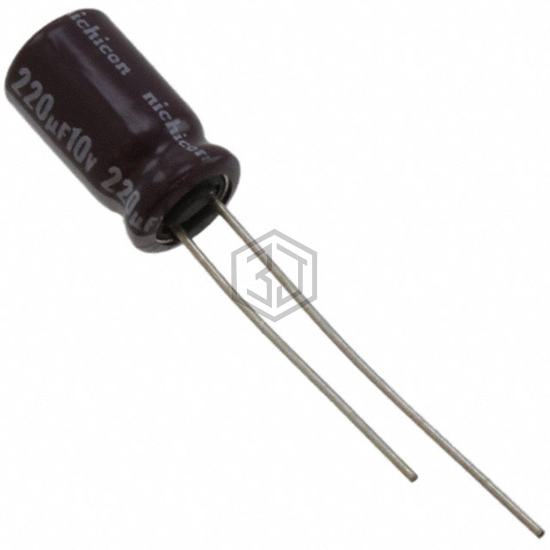

CAP ALUM 220UF 20% 10V RADIAL
UPB1A221MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,012
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1A221MED is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10PX220MEFCT15X11 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 78% | View |
| SEK221M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 10V RADIAL | 74% | View |
| ECA-1AHG221I | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 71% | View |
| 16YXG220MEFC8X11.5 | Rubycon | CAP ALUM 220UF 20% 16V RADIAL | 70% | View |
| USV0J221MFD1TA | Nichicon | CAP ALUM 220UF 20% 6.3V RADIAL | 70% | View |
| 227CKE010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 10V RADIAL | 69% | View |
Submit your RFQ for UPB1A221MED and get a quote within 24 hours.
