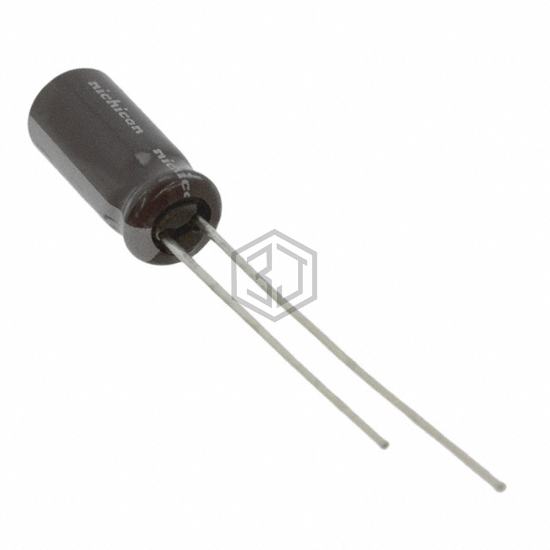

CAP ALUM 100UF 10V 20% RADIAL
UPB1A101MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 10V 20% RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,514
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 91 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB1A101MDD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECE-A1AKG101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 10V RADIAL | 91% | View |
| 10YXM100MEFRT15X11 | Rubycon | CAP ALUM 100UF 20% 10V RADIAL | 85% | View |
| UTS0J101MDD1TP | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 80% | View |
| UTT0J101MDD1TP | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 79% | View |
| USV0J101MFD1TP | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 78% | View |
| UTS1E101MPD1TA | Nichicon | CAP ALUM 100UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UPB1A101MDD1TD and get a quote within 24 hours.
