CAP ALUM 390UF 20% 35V RADIAL

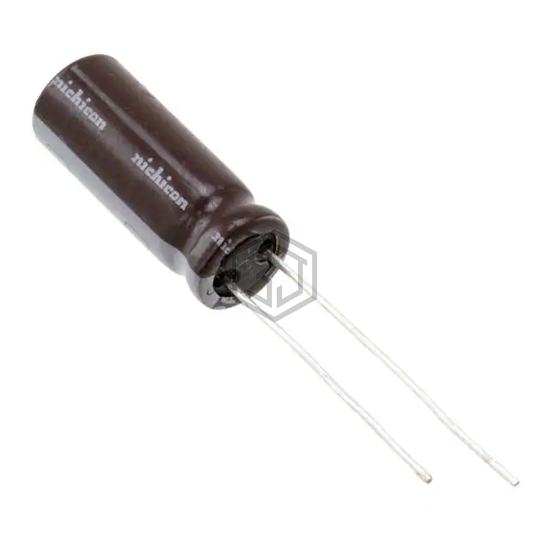

UPA1V391MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 915 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.22 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1H391MHD6 | Nichicon | CAP ALUM 390UF 20% 50V RADIAL | 85% | View |
| EEU-FC1E391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 25V RADIAL | 80% | View |
| EEU-FC1H391SB | Panasonic Electronic Components | CAP ALUM 390UF 20% 50V RADIAL | 72% | View |
| 600D397F030DL4 | Vishay Sprague | CAP ALUM 390UF 30V AXIAL | 71% | View |
| MAL224668391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 63V RADIAL | 70% | View |
| EEU-FC1C391 | Panasonic Electronic Components | CAP ALUM 390UF 20% 16V RADIAL | 53% | View |
Submit your RFQ for UPA1V391MPD1TA and get a quote within 24 hours.
