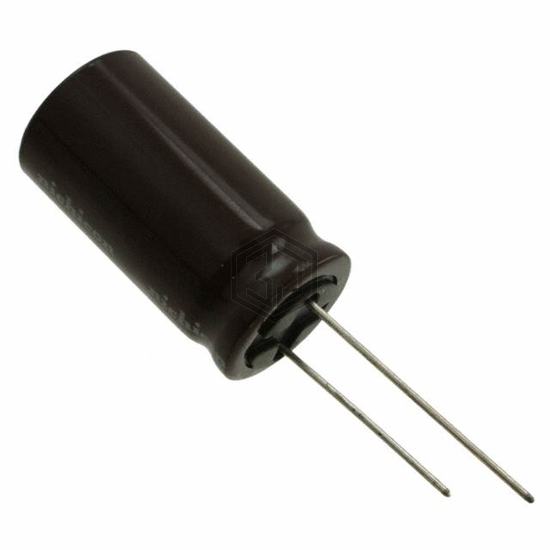

CAP ALUM 2700UF 20% 35V RADIAL
UPA1V272MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.389 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.81 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080581028 | Würth Elektronik | CAP ALUM 2700UF 20% 35V RADIAL | 88% | View |
| B41858C6278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 50V RADIAL | 77% | View |
| B41607B7278M9 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 40V RADIAL | 59% | View |
| MAL216055272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 58% | View |
| ELXV100EC3272MK30S | United Chemi-Con | CAP ALUM 2700UF 20% 10V RADIAL | 56% | View |
| MLS272M075EB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 56% | View |
Submit your RFQ for UPA1V272MHD and get a quote within 24 hours.
