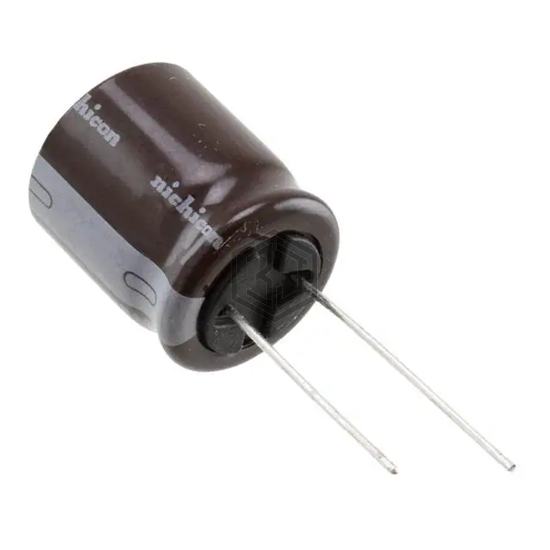

CAP ALUM 2200UF 20% 35V RADIAL
UPA1V222MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.244 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C5228M009 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 25V RADIAL | 82% | View |
| B41858C6228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 50V RADIAL | 81% | View |
| 860160478033 | Würth Elektronik | CAP ALUM 2200UF 20% 25V RADIAL | 76% | View |
| UPA1C222MHD3TO | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| 860080378024 | Würth Elektronik | CAP ALUM 2200UF 20% 16V RADIAL | 73% | View |
| B41888W6228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 50V RADIAL | 73% | View |
Submit your RFQ for UPA1V222MHD6TN and get a quote within 24 hours.
