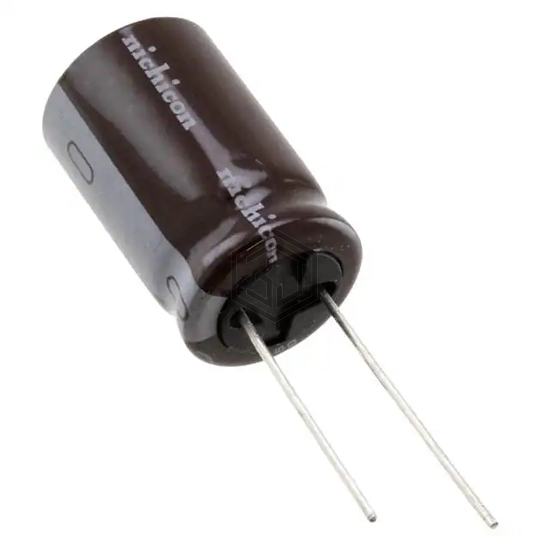

CAP ALUM 2200UF 20% 35V RADIAL
UPA1V222MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.346 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35JXF2200MEFC16X25 | Rubycon | CAP ALUM 2200UF 20% 35V T/H | 97% | View |
| LXZ35VB222M18X25LL | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 96% | View |
| RXW222M1EBK-1335S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 84% | View |
| EKMG350EC3222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 68% | View |
| 228RZM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 50V RADIAL | 58% | View |
| EEU-HD1E222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 53% | View |
Submit your RFQ for UPA1V222MHD1TN and get a quote within 24 hours.
