CAP ALUM 1800UF 20% 35V RADIAL

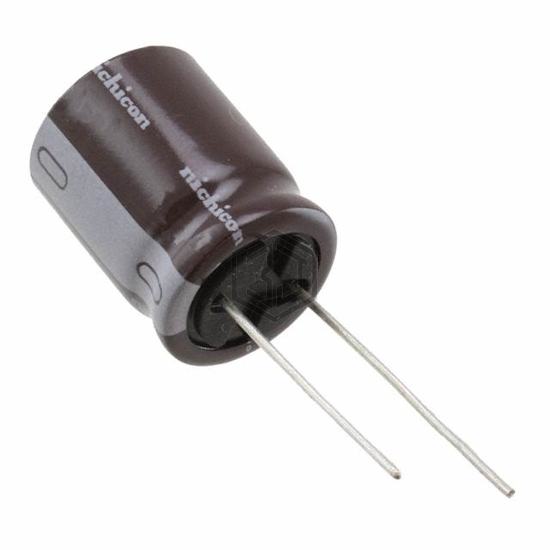

UPA1V182MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,879
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.981 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.33 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV250EC3182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 25V RADIAL | 84% | View |
| B41896D5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 83% | View |
| ELXZ500ELL182ML40S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 81% | View |
| EEU-FK1A182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 10V RAD TH | 64% | View |
| B41689A5188Q001 | EPCOS - TDK Electronics | CAP ALUM 1800UF 25V AXIAL | 63% | View |
| UPA1A182MPD | Nichicon | CAP ALUM 1800UF 20% 10V RADIAL | 60% | View |
Submit your RFQ for UPA1V182MHD6 and get a quote within 24 hours.
