CAP ALUM 1500UF 20% 35V RADIAL

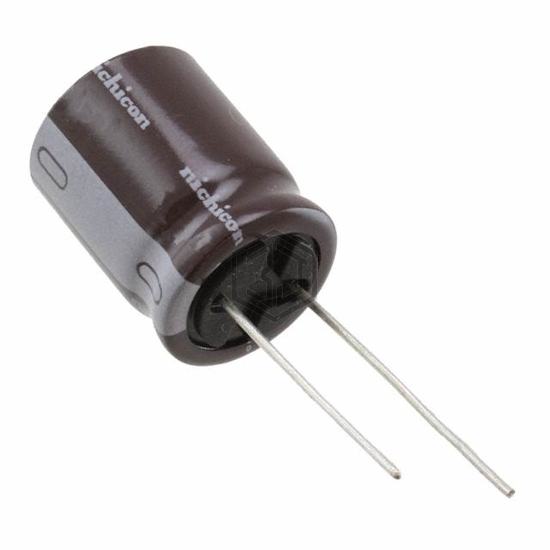

UPA1V152MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.981 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.33 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D158M040FV3O | Vishay Sprague | CAP ALUM 1500UF 20% 40V RADIAL | 91% | View |
| 757D158M025DT3D | Vishay Sprague | CAP ALUM 1500UF 20% 25V RADIAL | 86% | View |
| MAL224650152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 85% | View |
| 860080578024 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 84% | View |
| ELXV500ELL152MM30S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 83% | View |
| EEU-FC1C152S | Panasonic Electronic Components | CAP ALUM 1500UF 20% 16V RADIAL | 61% | View |
