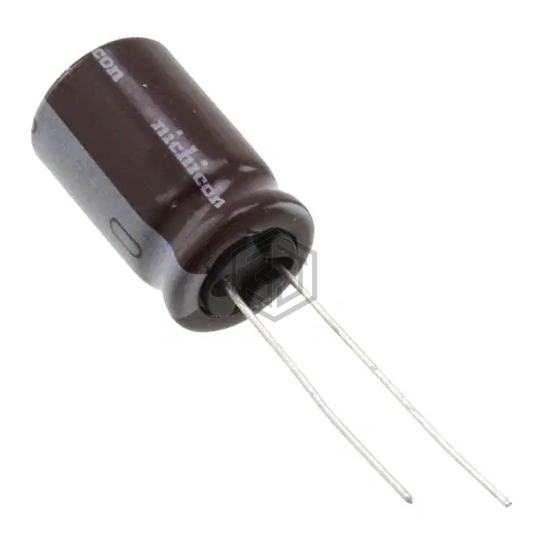

CAP ALUM 1000UF 20% 25V RADIAL
UPA1E102MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.418 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41890B5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 91% | View |
| RXW102M1VBK-1325S | SURGE | CAP ALUM 1000UF 20% 35V RADIAL | 87% | View |
| MAL214066102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 81% | View |
| B41866C7108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 81% | View |
| UBX1V102MHL | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 69% | View |
| EG1H102MNN1625EF8 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
Submit your RFQ for UPA1E102MHD3 and get a quote within 24 hours.
