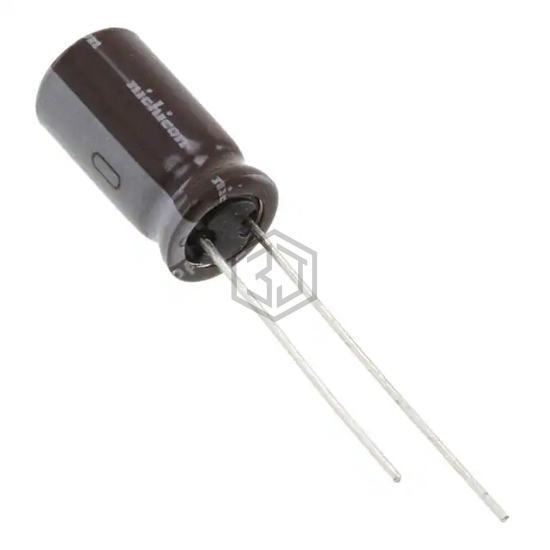

CAP ALUM 680UF 20% 16V RADIAL
UPA1C681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,372
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz |
| Ripple Current @ High Frequency | 860 mA @ 100 kHz |
| Impedance | 62 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214655681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 90% | View |
| MAL215034681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 69% | View |
| MAL215030681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 58% | View |
| 672D687F6R3DM4D | Vishay Sprague | CAP ALUM 680UF 6.3V RADIAL | 56% | View |
| EY1V681MNN1220F7 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 55% | View |
| THAS681M075AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 75V FLATPACK | 54% | View |
