CAP ALUM 2200UF 20% 16V RADIAL

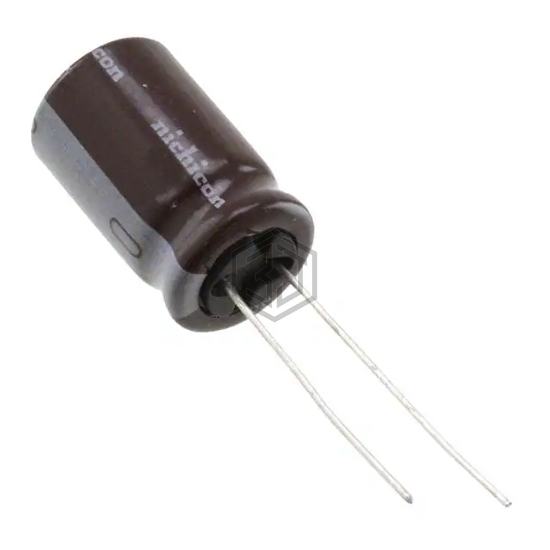

UPA1C222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.607 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213636222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 82% | View |
| 228KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 10V RADIAL | 77% | View |
| UBW1E222MHD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 74% | View |
| EEU-FC1V222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RADIAL | 63% | View |
| EG1H222MNN18P1EF8 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 60% | View |
| B41888D7228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for UPA1C222MHD and get a quote within 24 hours.
