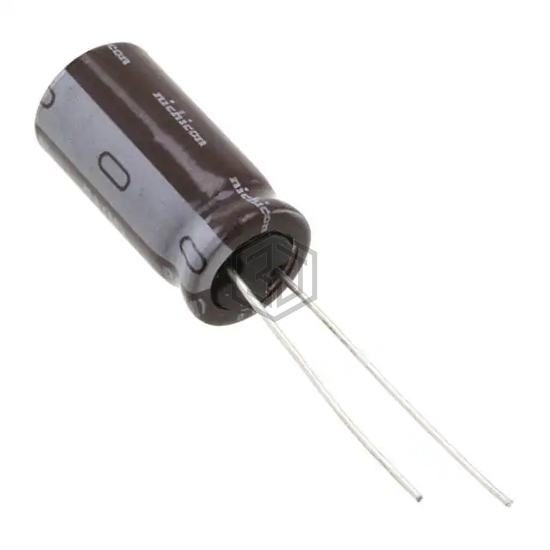

CAP ALUM 1200UF 20% 16V RADIAL
UPA1C122MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,202
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.267 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41043A4128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 16V RADIAL | 92% | View |
| UPJ1C122MHD1AA | Nichicon | CAP ALUM 16V POLAR | 92% | View |
| B41858C7128M9 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 35V RADIAL | 66% | View |
| B41858C6128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 65% | View |
| B41888D6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 58% | View |
| 860160680035 | Würth Elektronik | CAP ALUM 1200UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for UPA1C122MPD and get a quote within 24 hours.
