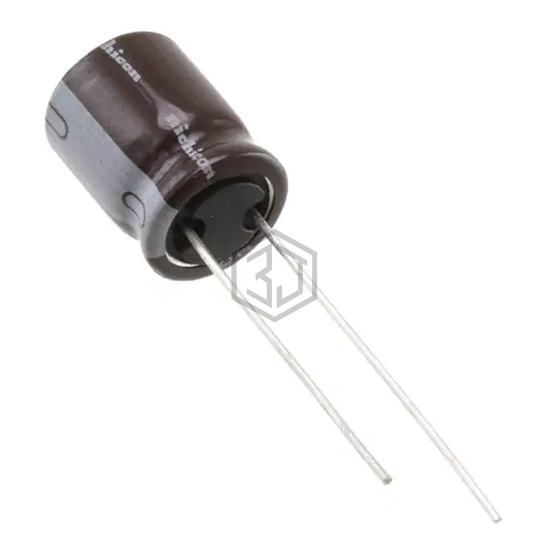

CAP ALUM 820UF 20% 10V RADIAL
UPA1A821MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 675 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK821M1ABK-0820S | Surge | CAP ALUM 10V POLAR | 84% | View |
| RZW821M0JBK-1012S | Surge | CAP ALUM 6.3V POLAR | 79% | View |
| EEU-FC0J821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 6.3V RADIAL | 76% | View |
| UPA1C821MPD6TD | Nichicon | CAP ALUM 820UF 20% 16V RADIAL | 71% | View |
| MAL213656821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 25V RADIAL | 66% | View |
| EEU-FC1E821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL | 58% | View |
Submit your RFQ for UPA1A821MPD6TD and get a quote within 24 hours.
