CAP ALUM 560UF 20% 10V RADIAL

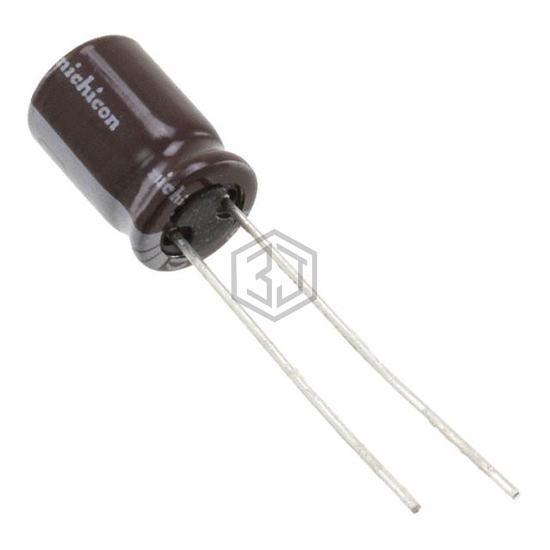

UPA1A561MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,954
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 10V RADIAL | 95% | View |
| UPA0J561MPD1TA | Nichicon | CAP ALUM 560UF 20% 6.3V RADIAL | 84% | View |
| EEU-FC0J561BJ | Panasonic Electronic Components | CAP ALUM 560UF 20% 6.3V RADIAL | 77% | View |
| ELXV630EC3561MK40S | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 64% | View |
| MAL213660561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 57% | View |
| B41888C5567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 25V RADIAL | 57% | View |
Submit your RFQ for UPA1A561MPD and get a quote within 24 hours.
