CAP ALUM 4700UF 20% 10V RADIAL

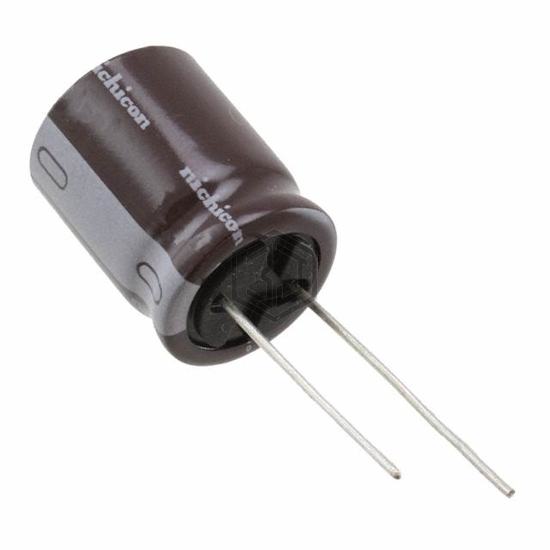

UPA1A472MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.981 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.33 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK472M1ABK-1340S | Surge | CAP ALUM 10V POLAR | 93% | View |
| MAL224695476E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 79% | View |
| MAL225055472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 77% | View |
| MAL224656472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 68% | View |
| 16WXA4700MEFCGC18X20 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 66% | View |
| MAL211846472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V T/H | 55% | View |
