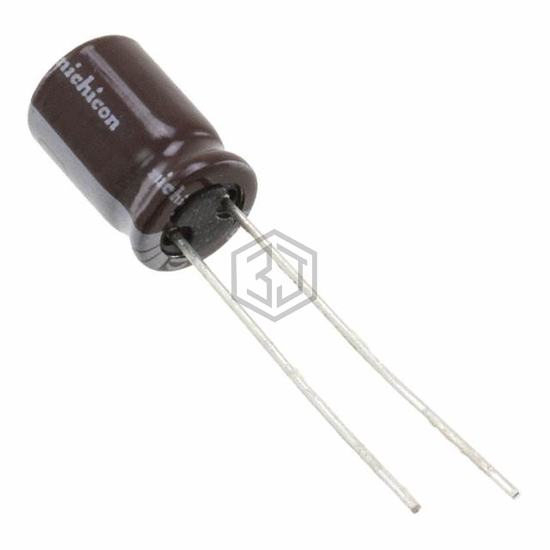

CAP ALUM 470UF 20% 10V RADIAL
UPA1A471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,015
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 472.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D477H012DM5J | Vishay Sprague | CAP ALUM 470UF 12V RADIAL | 88% | View |
| 630D477M012DD2A | Vishay Sprague | CAP ALUM 470UF 20% 12V AXIAL | 88% | View |
| MAL215065471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 83% | View |
| MAL213655471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 80% | View |
| 860160678030 | Würth Elektronik | CAP ALUM 470UF 20% 50V RADIAL | 63% | View |
| B41692A8477Q001 | EPCOS - TDK Electronics | CAP ALUM 470UF 63V AXIAL | 62% | View |
