CAP ALUM 3900UF 20% 10V RADIAL

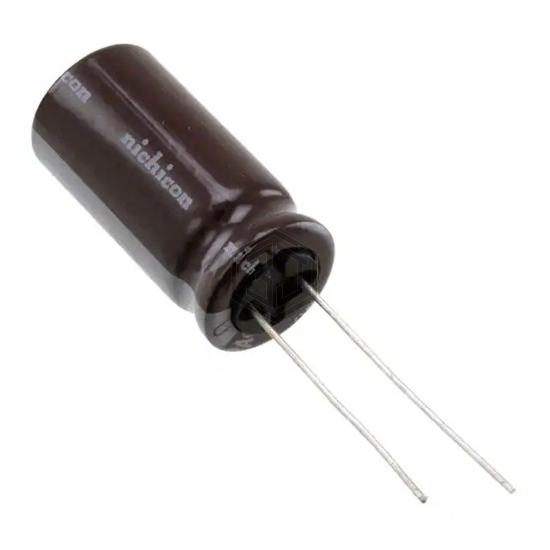

UPA1A392MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.938 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1A392 | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RAD TH | 99% | View |
| B41896C3398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 10V RADIAL | 91% | View |
| UPW1C392MHH | Nichicon | CAP ALUM 3900UF 20% 16V RADIAL | 83% | View |
| THAS372M040AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3700UF 20% 40V FLATPACK | 64% | View |
| THAS372M040AC0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3700UF 20% 40V FLATPACK | 64% | View |
| VPR372U016L2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3700UF 16V RADIAL | 60% | View |
Submit your RFQ for UPA1A392MHD and get a quote within 24 hours.
