CAP ALUM 2700UF 20% 10V RADIAL

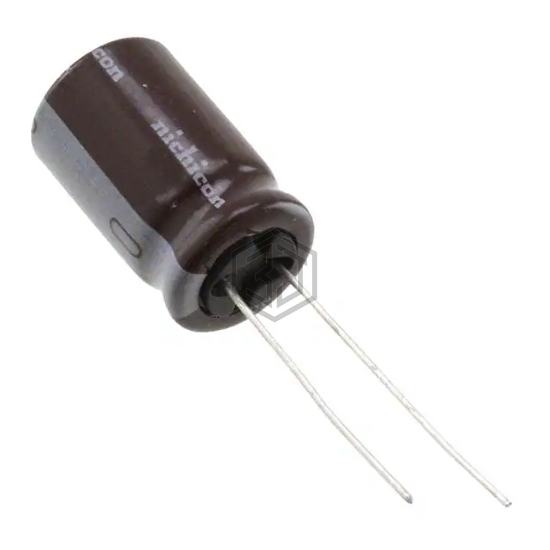

UPA1A272MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,398
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.607 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1A272 | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RAD TH | 99% | View |
| MAL213666272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 73% | View |
| ELXY350EC5272ML40S | United Chemi-Con | CAP ALUM 2700UF 20% 35V RADIAL | 61% | View |
| B41888D5278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 25V RADIAL | 60% | View |
| MAL214690276E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 35V RADIAL | 59% | View |
| UPA1E272MHD | Nichicon | CAP ALUM 2700UF 20% 25V RADIAL | 56% | View |
