CAP ALUM 2200UF 20% 10V RADIAL

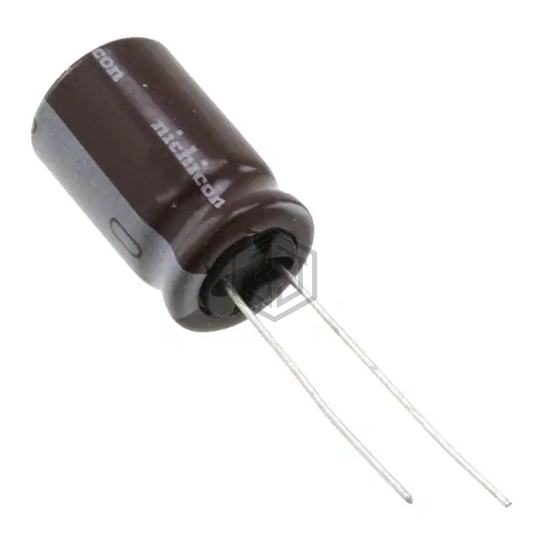

UPA1A222MHD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 6,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.607 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY100EMC222MK25S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 91% | View |
| ELXZ100ETE222MK20S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 89% | View |
| EEU-FK0J222LB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V RAD TH | 80% | View |
| 228KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 16V RADIAL | 69% | View |
| ELXV500EC5222MM40S | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 68% | View |
| MAL211815222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V AXIAL | 55% | View |
