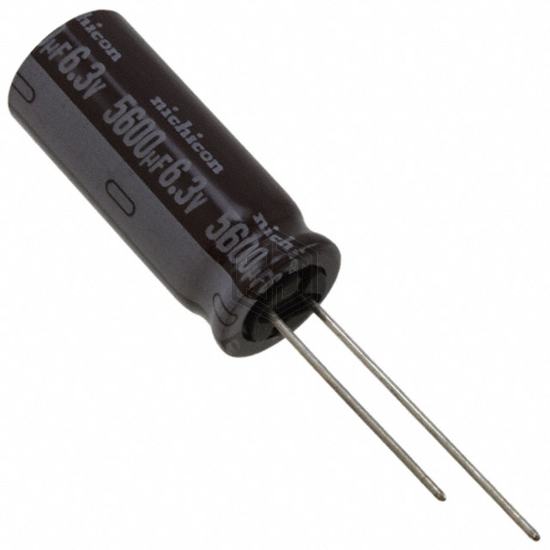

CAP ALUM 5600UF 20% 6.3V RADIAL
UPA0J562MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.312 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.72 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A562SB | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V RADIAL | 79% | View |
| ELXV160ELL562ML40S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 78% | View |
| MAL224656562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 25V RADIAL | 77% | View |
| MAL214666562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 25V RADIAL | 74% | View |
| EEU-FC1C562L | Panasonic Electronic Components | CAP ALUM 5600UF 20% 16V RADIAL | 74% | View |
| MAL213694565E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 10V RADIAL | 74% | View |
