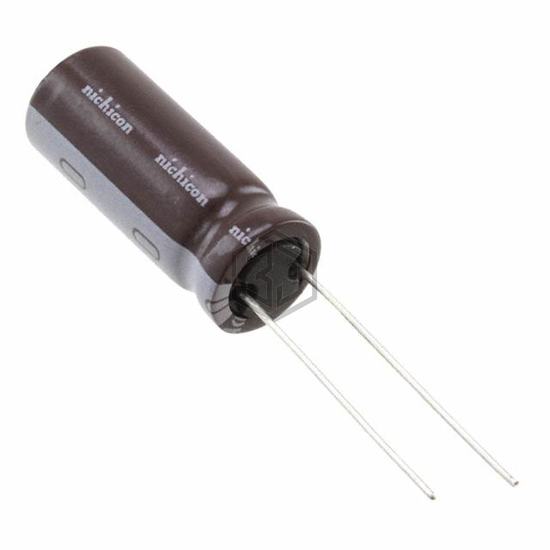

CAP ALUM 2700UF 20% 6.3V RADIAL
UPA0J272MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,631
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.428 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 100 kHz |
| Impedance | 33 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A272B | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RADIAL | 81% | View |
| B41858C3278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 10V RADIAL | 79% | View |
| MAL224655272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 77% | View |
| MAL214656272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 72% | View |
| MAL224696273E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 65% | View |
| MAL214696276E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 61% | View |
Submit your RFQ for UPA0J272MPD and get a quote within 24 hours.
