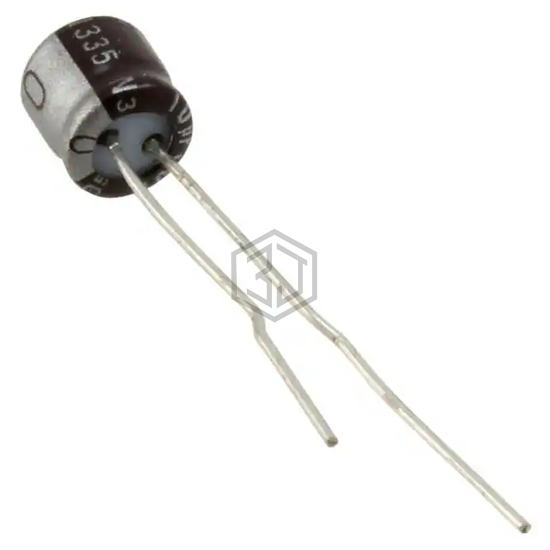

CAP ALUM 10UF 20% 35V RADIAL
UMV1V100MFD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,698
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV1V100MFD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE350ELL100MH12D | United Chemi-Con | CAP ALUM 10UF 20% 35V RADIAL | 100% | View |
| 35MH510MEFCT55X5 | Rubycon | CAP ALUM 10UF 20% 35V RADIAL | 98% | View |
| EEU-EB1J100SB | Panasonic Electronic Components | CAP ALUM 10UF 20% 63V RADIAL | 71% | View |
| EKMG160ETD100ME11D | United Chemi-Con | CAP ALUM 10UF 20% 16V RADIAL | 60% | View |
| 63YXM10MEFR5X11 | Rubycon | CAP ALUM 10UF 20% 63V RADIAL | 57% | View |
| 610D106F100DR5 | Vishay Sprague | CAP ALUM 10UF 100V AXIAL | 56% | View |
Submit your RFQ for UMV1V100MFD1TP and get a quote within 24 hours.
