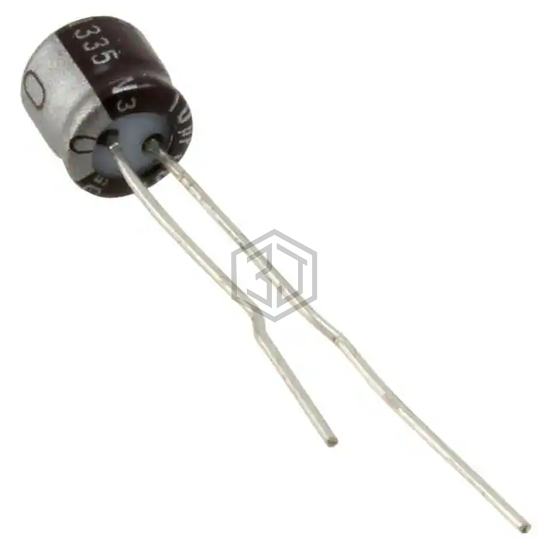

CAP ALUM 10UF 20% 35V RADIAL
UMV1V100MFD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,006
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV1V100MFD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TE1304 | Vishay Sprague | CAP ALUM 10UF 50V AXIAL | 77% | View |
| 16MH710MEFCT54X7 | Rubycon | CAP ALUM 10UF 20% 16V RADIAL | 72% | View |
| TE1507 | Vishay Sprague | CAP ALUM 10UF 150V AXIAL | 56% | View |
| TE1407 | Vishay Sprague | CAP ALUM 10UF 100V AXIAL | 56% | View |
| TE1407-E3 | Vishay Sprague | CAP ALUM 10UF 100V AXIAL | 56% | View |
| 610D106F250DR5 | Vishay Sprague | CAP ALUM 10UF 250V AXIAL | 56% | View |
Submit your RFQ for UMV1V100MFD and get a quote within 24 hours.
