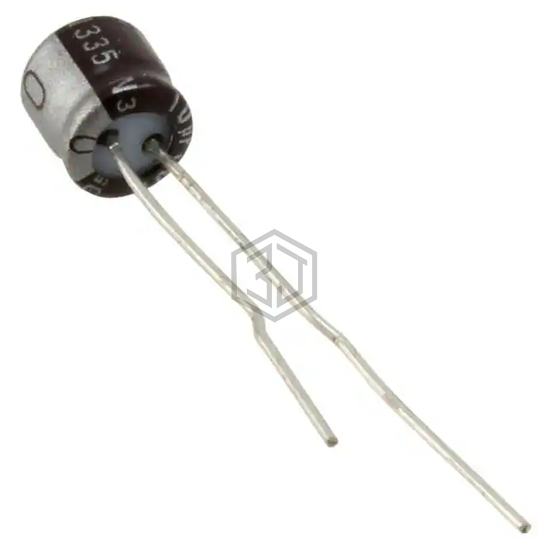

CAP ALUM 4.7UF 20% 50V RADIAL
UMV1H4R7MFD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,249
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 mA @ 120 Hz |
| Ripple Current @ High Frequency | 28.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV1H4R7MFD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-EB1H4R7SH | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 98% | View |
| MAL212367478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 40V AXIAL | 86% | View |
| ECA-1HHG4R7C | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 78% | View |
| EKMG500ETC4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 50V RADIAL | 66% | View |
| 50YXM4.7MEFRT15X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 62% | View |
| EKYA101ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 100V RADIAL | 52% | View |
Submit your RFQ for UMV1H4R7MFD and get a quote within 24 hours.
