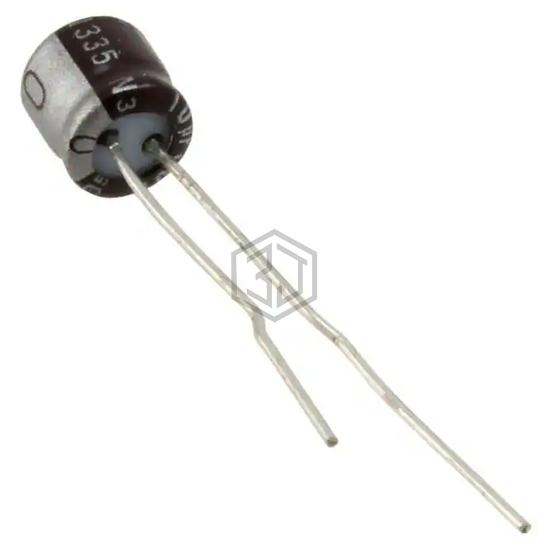

CAP ALUM 33UF 20% 10V RADIAL
UMV1A330MFD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,501
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV1A330MFD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160272003 | Würth Elektronik | CAP ALUM 33UF 20% 10V RADIAL | 98% | View |
| URZ1A330MDD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 85% | View |
| 16MH533MEFCTZ6.3X5 | Rubycon | CAP ALUM 33UF 20% 16V RADIAL | 70% | View |
| UPW0J330MDD | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 67% | View |
| MAL214259339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 100V RADIAL | 56% | View |
| EKMQ201ELL330MK15S | United Chemi-Con | CAP ALUM 33UF 20% 200V RADIAL | 56% | View |
Submit your RFQ for UMV1A330MFD and get a quote within 24 hours.
